Simulating Lattices using PBC and OBC

In this section, you will learn how to simulate both Periodic Boundary Conditions (PBC) and Open Boundary Conditions (OBC) using MoirePy. Understanding the transition between these two is vital for distinguishing between bulk properties and edge-specific phenomena.

1. Physical Difference: Bulk vs. Flake

  • PBC (pbc=True): Represents an infinite periodic system. Atoms at the boundary "wrap around" to connect with atoms on the opposite side of the moiré unit cell, simulating an endless bulk material.
  • OBC (pbc=False): Represents a finite flake or nanostructure. Atoms at the boundaries have fewer neighbors because the lattice physically ends, creating edges.

2. Minimal Setup

We define the same lattice geometry once, toggling only the pbc flag to see how it changes the connectivity.

import numpy as np
import matplotlib.pyplot as plt
from moirepy import BilayerMoireLattice, HexagonalLayer

# Parameters for a ~9.43 degree twist
params = {
    "latticetype": HexagonalLayer,
    "ll1": 3, "ll2": 4, "ul1": 4, "ul2": 3,
    "n1": 1, "n2": 1
}

# 1. Open Boundary Conditions
lattice_obc = BilayerMoireLattice(**params, pbc=False)

# Output:
# twist angle = 0.1646 rad (9.4300 deg)
# 74 cells in upper lattice
# 74 cells in lower lattice

# 2. Periodic Boundary Conditions
lattice_pbc = BilayerMoireLattice(**params, pbc=True)

# Output:
# twist angle = 0.1646 rad (9.4300 deg)
# 74 cells in upper lattice
# 74 cells in lower lattice

3. Hamiltonian and Connectivity

The internal logic for finding neighbors changes significantly. In PBC, MoirePy uses a KDTree on a set of "ghost" atoms (bigger lattice) to ensure that atoms near the edge find their counterparts on the other side.

lattice_obc.generate_connections(inter_layer_radius=1)
lattice_pbc.generate_connections(inter_layer_radius=1)

# Generate Hamiltonians with identical hopping parameters
ham_obc = lattice_obc.generate_hamiltonian(tll=1, tuu=1, tul=0.8, tlu=0.8)
ham_pbc = lattice_pbc.generate_hamiltonian(tll=1, tuu=1, tul=0.8, tlu=0.8)

print(f"OBC Non-zero entries: {ham_obc.nnz}")
print(f"PBC Non-zero entries: {ham_pbc.nnz}")

# Output:
# OBC Non-zero entries: 1460
# PBC Non-zero entries: 1670

Info

In PBC, an atom at the far right edge connects to a neighbor at the far left edge. MoirePy handles this mapping automatically. You don't need to manually calculate wrapped coordinates. This results in a higher number of non-zero entries (nnz) in the PBC Hamiltonian.

  • Converting sparse matrices to dense because system size is small anyway and it is easier to work with dense matrices
  • We have added only real hopping parameters, so real space hamiltonian would be purely real and imaginary parts are zero. Hence keeping only the real part is sufficient
ham_obc = ham_obc.toarray().real
ham_pbc = ham_pbc.toarray().real

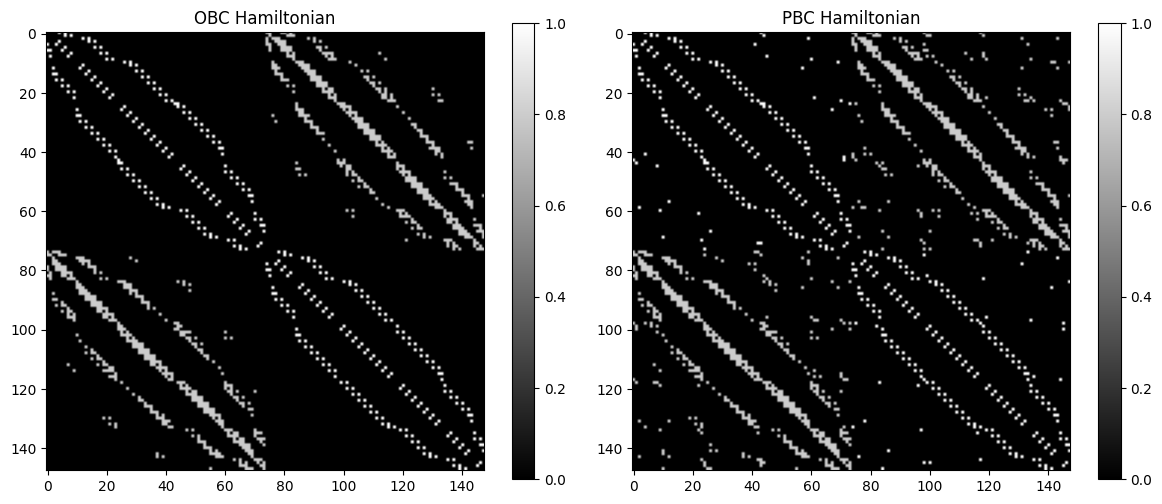

4. Visual Comparison (Hamiltonian Structure)

Let's plot the hamiltonian matrices and let's see how they look like:

fig, axes = plt.subplots(1, 2, figsize=(12, 5))

# OBC plot
im0 = axes[0].imshow(ham_obc, cmap="gray")
axes[0].set_title("OBC Hamiltonian")
fig.colorbar(im0, ax=axes[0])

# PBC plot
im1 = axes[1].imshow(ham_pbc, cmap="gray")
axes[1].set_title("PBC Hamiltonian")
fig.colorbar(im1, ax=axes[1])

plt.tight_layout()

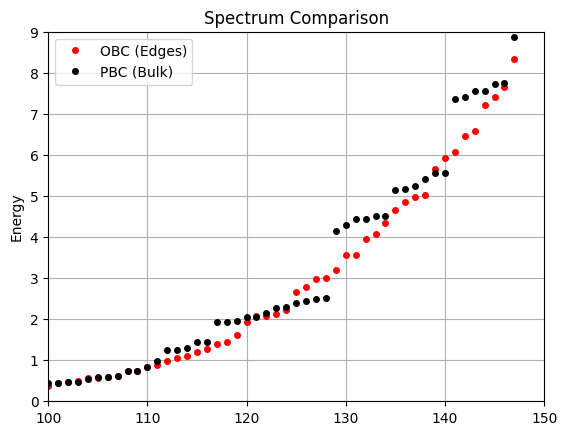

5. Spectrum Comparison

The choice of boundary conditions significantly affects the energy eigenvalues. OBC introduces "edge states" that may appear in gaps where the bulk (PBC) system has no states.

def get_spectrum(ham):
    vals = np.linalg.eigvalsh(ham)
    return np.sort(vals)

spec_obc = get_spectrum(ham_obc)
spec_pbc = get_spectrum(ham_pbc)

plt.plot(spec_obc, 'ro', label='OBC (Edges)', markersize=4)
plt.plot(spec_pbc, 'ko', label='PBC (Bulk)', markersize=4)
plt.xlim(100, 150)
plt.ylim(0, 9)
plt.legend()
plt.ylabel("Energy")
plt.title("Spectrum Comparison")
plt.grid(True)


What We Did

  • Constructed the same lattice with OBC and PBC
  • Observed how connectivity changes at the boundaries
  • Compared Hamiltonians and resulting spectra

This demonstrates how boundary conditions control whether you simulate a finite system or an infinite periodic system.
