Quickstart: Twisted Bilayer Graphene in 5 Minutes

In this tutorial, you will simulate Twisted Bilayer Graphene (TBG) from scratch. MoirePy abstracts the geometric complexity of commensurate lattice construction, allowing you to go from a twist angle to a Hamiltonian in seconds.

1. Minimal Installation

pip install moirepy

2. Construct the Moire Lattice

We use the built-in HexagonalLayer (Graphene) to construct the bilayer. While this example focuses on graphene, MoirePy includes several other built-in geometries:

  • SquareLayer
  • TriangularLayer
  • KagomeLayer
  • Rhombus60Layer

You can also define your own entirely unique geometries; see Defining Custom Layers for more.

import numpy as np
import matplotlib.pyplot as plt
from moirepy import BilayerMoireLattice, HexagonalLayer

# Define a commensurate TBG lattice
lattice = BilayerMoireLattice(
    latticetype=HexagonalLayer,
    # Config for a ~9.43 degree twist
    # Find these via our tool: https://jabed-umar.github.io/MoirePy/theory/avc/
    ll1=3, ll2=4, ul1=4, ul2=3,
    n1=1, n2=1,    # Number of moiré unit cells
    pbc=True,      # Periodic Boundary Conditions, set False for OBC
)

# Visualize the structure
plt.figure(figsize=(8, 8))

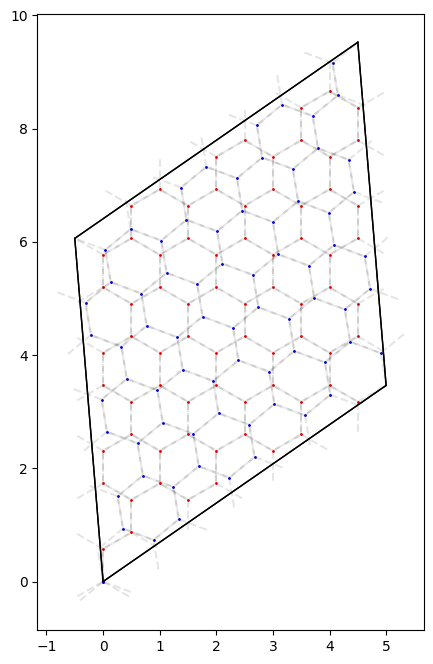

lattice.plot_lattice()

# Output:
# twist angle = 0.1646 rad (9.4300 deg)
# 74 cells in upper lattice
# 74 cells in lower lattice


the values ll1, ll2, ul1, ul2 are the moire lattice indices that define the twist angle and the moire unit cell. You can find these values for any twist angle using our tool: Angle Value Calculator

3. Generate the Hamiltonian

MoirePy separates geometry (KDTree-based neighbor search) from physics (hopping values). You can pass constants or custom functions for every term.

Real-Space Hamiltonian

It is very easy to generate the real-space Hamiltonian using MoirePy, but first you need to call the generate_connections method to find the neighbors. This is slow (\(O(n\log n)\)) process but it needs to be done just once for each lattice. After that, you can generate Hamiltonians with different hopping parameters fast in \(O(n)\) time.

lattice.generate_connections(inter_layer_radius=1)

Although we ae saying generate_connections is slow, it is written in rust and practically it get's done in under 100ms for lattices with >5000 sites and then the generation of the Hamiltonian get's done in under 1ms everytime.

real_hamiltonian = lattice.generate_hamiltonian(
    tll=1.0,      # Lower-layer intra-layer hopping
    tuu=1.0,      # Upper-layer intra-layer hopping
    tul=0.1,      # Inter-layer hopping (Upper -> Lower)
    tlu=0.1,      # Inter-layer hopping (Lower -> Upper)
    tlself=0.0,   # Lower-layer onsite potential
    tuself=0.0,   # Upper-layer onsite potential
)  # returns scipy.sparse.coo_matrix not numpy array, to save memory
# use real_hamiltonian.toarray() to convert to dense numpy array if needed

print(f"Hamiltonian Dimension: {real_hamiltonian.shape}")

# Output:
# Hamiltonian Dimension: (148, 148)

Warning

For a Hermitian system, ensure that your tlu function/value is the complex conjugate of tul. MoirePy does not enforce this automatically by design.

k-Space Hamiltonian

Essential for band structure calculations. Switching to momentum space requires no structural changes to your logic.

# Get the Hamiltonian at k = (0, 0) for example
phase = lattice.get_phase(k=(0, 0))  # scipy.sparse.coo_matrix of hamiltonian shape
k_hamiltonian = real_hamiltonian.multiply(phase)  # or `real_hamiltonian * phase`` if both are np.arrays

4. Compute Low-Energy States

Because the Hamiltonian is returned as a standard SciPy sparse matrix, it integrates perfectly with the scientific Python ecosystem.

from scipy.sparse.linalg import eigsh

# Find the 25 eigenvalues closest to zero
eigenvalues = eigsh(k_hamiltonian, k=25, sigma=0, return_eigenvectors=False)

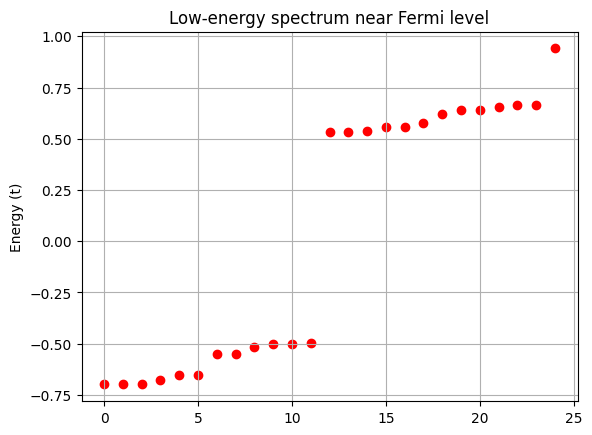

plt.scatter(range(len(eigenvalues)), np.sort(eigenvalues), color='red')
plt.ylabel("Energy (t)")
plt.title("Low-energy spectrum near Fermi level")
plt.grid()


The "Getting Started" Roadmap

Now that you've built your first lattice, dive deeper into the core mechanics:

  1. K-Space & Band Structures: How to generate k-space Hamiltonians and compute band structures.
  2. OBC vs PBC: How we can simulate both infinite and finite systems using PBC and OBC respectively.
  3. Defining Custom Layers: Move beyond graphene to MoS2, Square lattices, or Kagome.
  4. Designing Custom Hopping: How to implement distance-dependent (exponential) hopping or strain.
  5. Tutorials and Replicated Papers: See full physical results.
